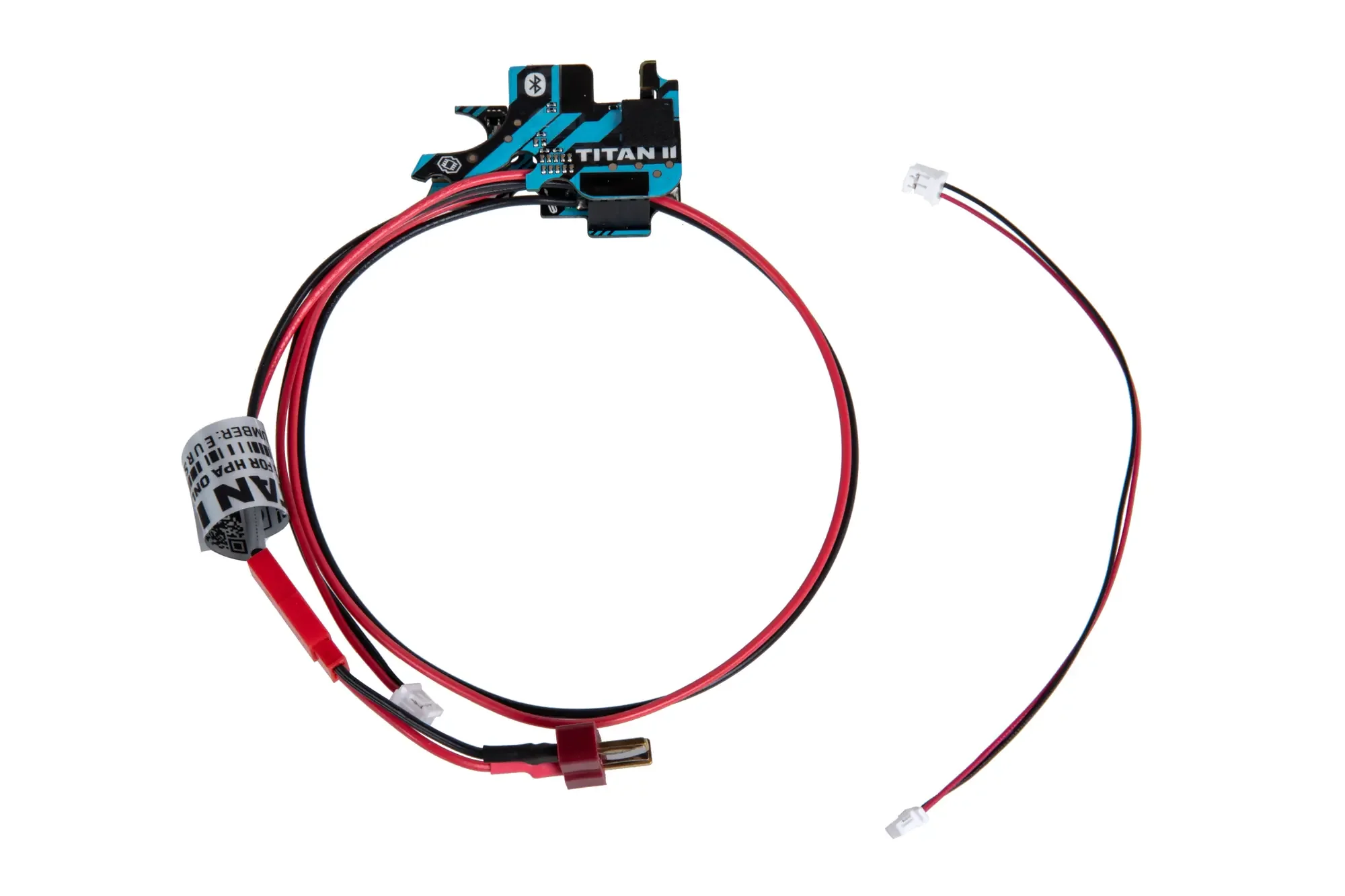

TITAN II Bluetooth V2 Controller Kit (HPA)

TITAN II Bluetooth V2 is GATE's premier electronics replacement unit (ETU) for the contact block. It's equipped with the latest Bluetooth 5.2 technology, granting direct control over replica settings, telemetry, and compatibility with smartwatches, STATUS, and other GATE products.

Optical trigger sensor allows you to set the trigger "to the touch" with a precision of up to 50 levels of sensitivity for the first millimetre of trigger movement, while retaining the advantages of the sensor known from the TITAN V2. The TITAN II Bluetooth® V2 is equipped with a multifunctional port ready to connect additional accessories such as bolt-catch, sensor magazine, hop-up chamber ball illuminator and others.

Technical specifications

• Voltage rating: 3.75-17 VDC
• Rated current: 30 A
• Maximum no-load current consumption: 27 mA
• Unloaded current consumption: 100 µA
• Communications: Bluetooth® 5.2 Low Energy
• Dimensions (length x width x thickness): 47.2 mm x 28.9 mm x 14.5 mm
• Weight of finished product: 28.2g
• Operating temperature range: min. -15° C, max. +50° C
• Operating relative humidity: ≤ 80%
• Version with revised wiring, prepared for single and two-valve HPA engines.
