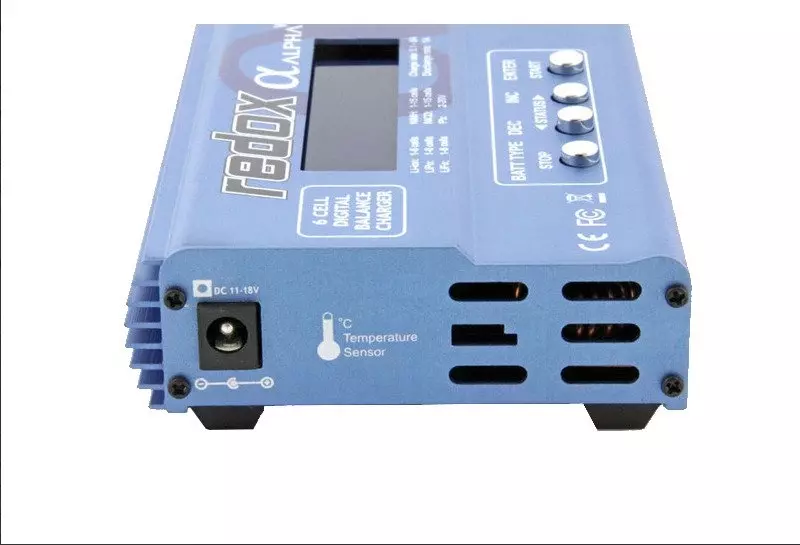

Redox Alpha V2

A new, improved version of the popular Alpha charger from the Redox company. Among other things, the Redox Alpha V2 is equipped with an up-to-date software which guarantees a long and stable operation of the device. In addition, a large heat sink has been mounted on the top of the charger which discharges heat very efficiently. You can change the charging current of the charger and monitor the voltage of each cell during the charging process

Characteristics

• Dimensions: 134 x 86 x 26 mm
• Operational voltage: DC 11.0~18.0 V
• Output power:
• Maximum charging power 50W
• Maximum discharging power 5W
• Charging current: 0.1~5.0A
• Discharging current: 0.1~1.0A
• Balancing current intensity : 300 mAh/cell
• Number of supported NiCD/NiMH cells: 1~15 cells
• Number of supported Li-Po/Fe/Ion cells: 1~6 cells
• Supported Pb cells : 2~20V
• Weight (without wiring): 400 g
• Charger’s inbuilt memory: maximum of 5 battery packs
• Battery pack cycling function
• 4 programming buttons
• Inbuilt sockets:
• balancer sockets 2s, 3s, 4s, 5s, 6s ,
• Gold 4 mm sockets,
• Jack type socket (powered by 12V DC) ,
• an optional temperature sensor socket,

The set includes:

• the Redox Alpha V2 charger,
• a 12V DC power wire (Jack crocodiles),
• 1 x Gold 4 mm Adapter DEAN plug,
• Additional extending adapters for the Gold 4 mm adapter DEAN plugs:
• 1 x DEAN adapter plug Crocodiles
• 1 x DEAN adapter plug – Servo socket (FUTABA type)
• 1 x DEAN adapter plug – spark plug dummy (for charging 1,5V clips)
• 1 x DEAN adapter plug – Tamiya LARGE
•  Charger without power cable The power cable must be purchased separately.

• English language user’s manual
• Redox Alpha V2 charger
• Dimensions: 134 x 86 x 26 mm
• Supported batteries: NiCd/NiMH, LiPo, LiFe, LiIon,Pb
• Weight (without the wiring): 400g
