ME Hop-Up Chamber - PRO / LED Tracer

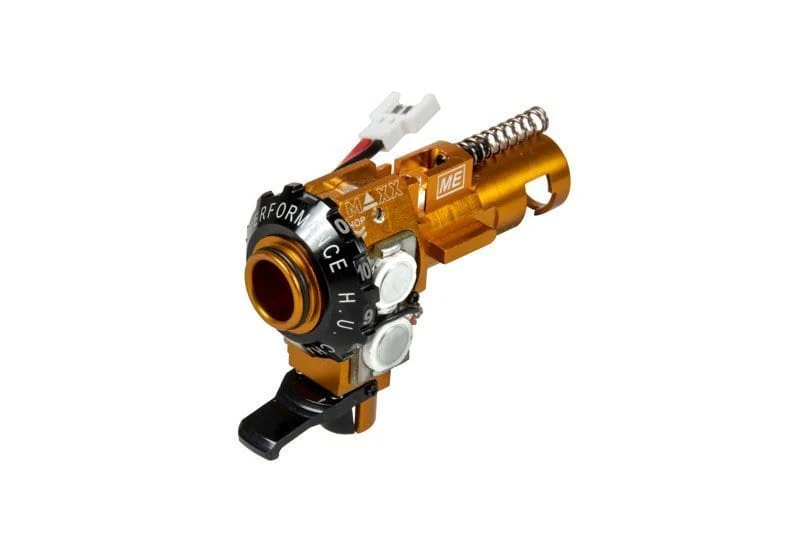

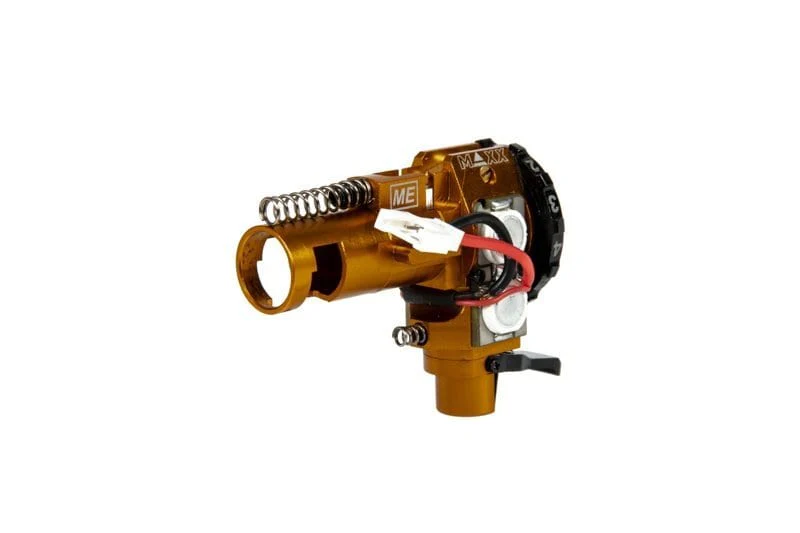

ME CNC Aluminum HopUp Chamber PRO / LED Tracer

A highest quality HopUp chamber intended for tuning of M4 / M16 replicas. Rotary chambers by Maxx Model Products are dedicated for the most demanding of players and offer an unparalleled thus far on the market quality of finish as well as perfect operation of the HU system in a replica.

Specification:

• precisely made form a block of aerospace aluminum using CNC technology
• ensured compatibility and tightness with M4 / M16 carbine replicas in Tokyo Marui standard (including Krytac replicas but NOT KWA)
• rotary adjustment knob
• designed from scratch levers and concave nubs that provide issuefree operation with standard buckings and Rhop
• removable brass Slot Pin for configuring and maintenance
• compatible with 21 mm and 21.25 mm long nozzles
• full compatibility with majority of soft and hard HU buckings available on the market maintaining zero FPS drops and without any BBs falling out
• features a special CNC Delrin Locking CClip, that prevents vibrations and movement of the barrel
• equipped with 3 compression springs on top, at the bottom and in the middle of the chamber providing ideal and steady position in the replica
• compatible with every V2 gearbox 11 mm / 11.5 mm bore
• specially designed BB Latching System preventing BBs from falling out once the magazine of the replica has been removed
• openable window that allows for simple taking out the BB from inside the chamber
• UV LED Tracer BBilluminating module included in the set
• possibility of attaching a sensor that stops the motor / HPA engine once the magazine has been emptied (not included in the set)

SPECIFICATION:

• Length: 51 mm
• Height: 37.75 mm
• Hub Outer Diameter (for the gearbox): min 11 mm max 11.5 mm
• Hub Outer Diameter (for the external barrel): min 12 mm
• Hub Inner Diameter (for the nozzle): min 11 mm max 8.3 mm
• Feeder Outer Diameter (for the magazine ): min 11 mm max 9.25 mm
• Feeder Length (for the magazine ): max 6.25 mm
• Material: Aluminum 6061

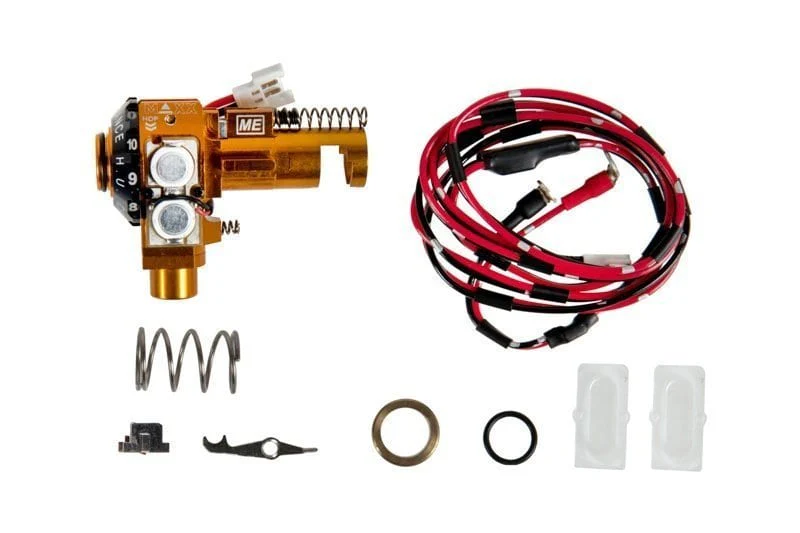

The set includes:

• 1 x chamber with BB Latching system
• 1 x UV LED BBilluminating module
• 2 x transparent, vinyl cover
• 1 x aluminum CNC StandardHop arm
• 1 x aluminum CNC RHop arm
• 1 x silicon StandardHop Nub Damper
• 1 x silicon Rubber RHop Nub Damper
• 1 x aluminum, precise CNC Hop Concave Nub 4.5 mm
• 1 x aluminum, precise CNC RHop Concave Nub 6 mm
• 1 x brass, rifled CNC Slot Pin
• 1 x CNC Delrin Locking CClip
• 1 x brass CNC Barrel Spacer
• 1 x brass Oring Spacer Holder
• 3 x steel compression spring
