Gearbox GATE EON V2 with TITAN II Bluetooth Short Stroke (Front Wired)

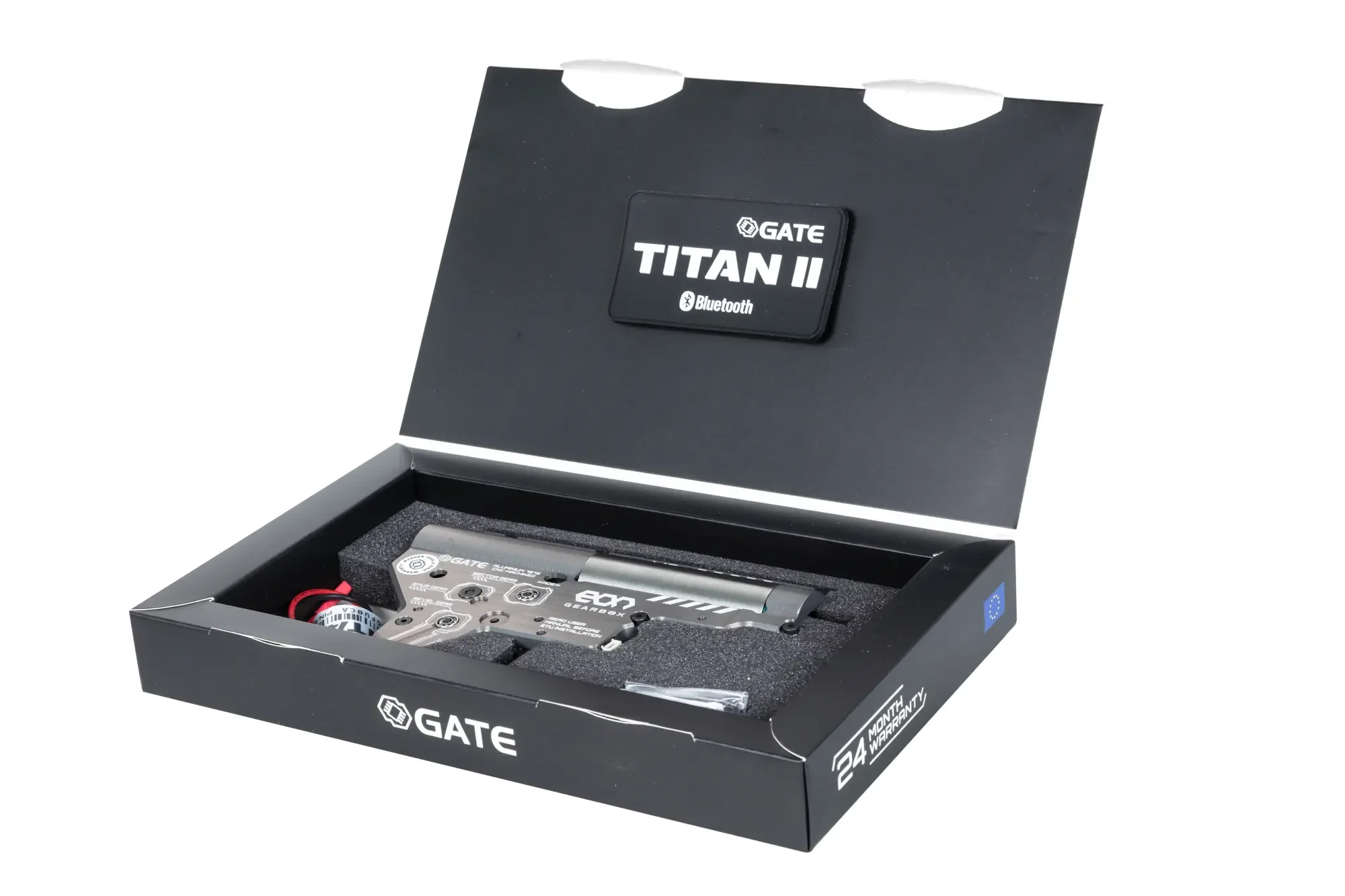

Complete Gearbox GATE EON V2 with Built-in TITAN II Bluetooth® Short Stroke 330 FPS / 1J (Front Wired)

The Complete GATE EON V2 Gearbox with TITAN II Bluetooth® is a premium high-performance gearbox solution designed for players who demand exceptional trigger response, reliability and advanced electronic control straight out of the box. Fully assembled and precision-engineered using CNC-machined Aluminum 7075, this front-wired gearbox is optimized for ultra-fast response and smooth operation in competitive CQB and speedsoft environments.

Configured as a 13:1 SSG (Short Stroke) setup delivering approximately 330 FPS / 1 Joule, this complete gearbox combines top-tier internal components with the powerful GATE TITAN II Bluetooth® ETU, providing unmatched customization and real-time telemetry via the GATE Control Station™ (GCS).

Built for Maximum Trigger Response

The Short Stroke high-speed configuration is engineered for instant trigger reaction and high reliability under demanding gameplay conditions.

• 13:1 SSG gear ratio for rapid cycling
• Optimized 330 FPS / 1J setup ideal for CQB and speedsoft
• Front wired configuration
• Plug & Play installation directly out of the box

Integrated TITAN II Bluetooth® ETU

The installed GATE TITAN II Bluetooth® V2 provides industry-leading electronic control, advanced diagnostics and complete wireless configuration.

• Bluetooth® connectivity for real-time tuning
• Live replica settings editing through GCS EXPERT
• Advanced trigger adjustment
• Pre-cocking and active brake functions
• Telemetry and diagnostics support

Premium Internal Components

The EON gearbox is assembled using reinforced CNC components engineered for durability and smooth high-speed operation.

Included Internal Parts

• GATE EON V2 CNC gearbox shell
• Nova Trigger
• 13:1 high-speed SSG gearset
• CNC reinforced piston with full steel teeth
• EON Protector cylinder head
• EON High Speed piston head
• Sealed CNC POM nozzle – 21.25 mm
• Polished stainless steel cylinder
• EON tappet plate
• Reinforced anti-reversal latch
• Reinforced 8mm low-friction bearings

The setup is perfectly matched with the GATE EON hop-up chamber and other hop-up units designed for 21.25 mm nozzles.

Ready for Competitive Airsoft

This complete gearbox is an ideal upgrade for advanced M4 and AR-platform airsoft rifles requiring extreme responsiveness, electronic precision and professional-grade reliability.

Discover more high-end upgrades in our MOSFET & ETU collection or complete your build with products from our internal parts collection.

Technical Specifications

Brand	GATE
Product Type	Complete Gearbox
Model	GATE EON V2 + TITAN II Bluetooth®
Gearbox Version	Version 2
Configuration	13:1 SSG Short Stroke
Power Output	330 FPS / 1 Joule
ETU	TITAN II Bluetooth® V2
Wiring	Front Wired
Gearbox Material	CNC Aluminum 7075
Bearing Size	8 mm reinforced bearings
Nozzle Length	21.25 mm
Dimensions	17.5 × 10 × 2.5 cm
Weight	360 g
Colour	Black
