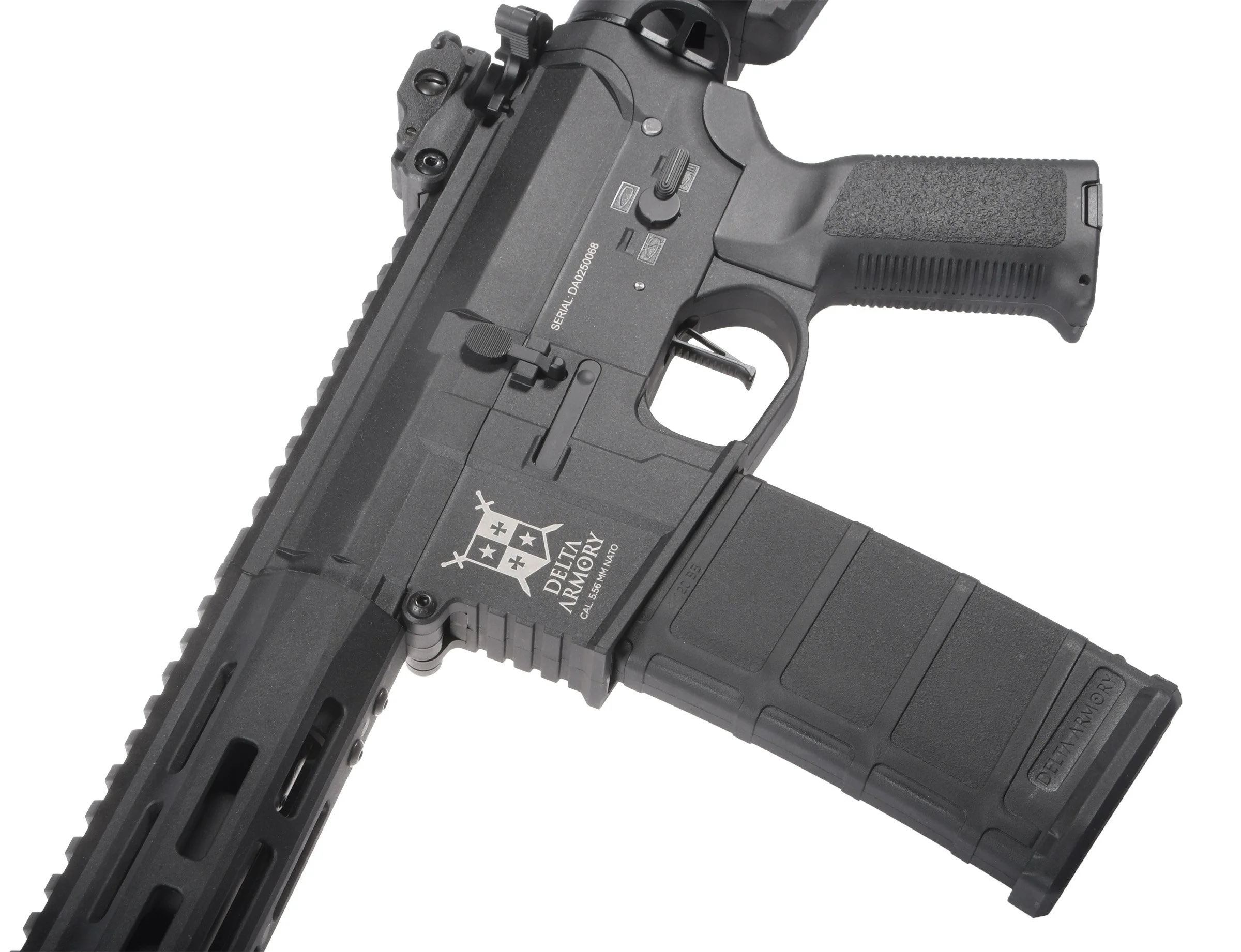

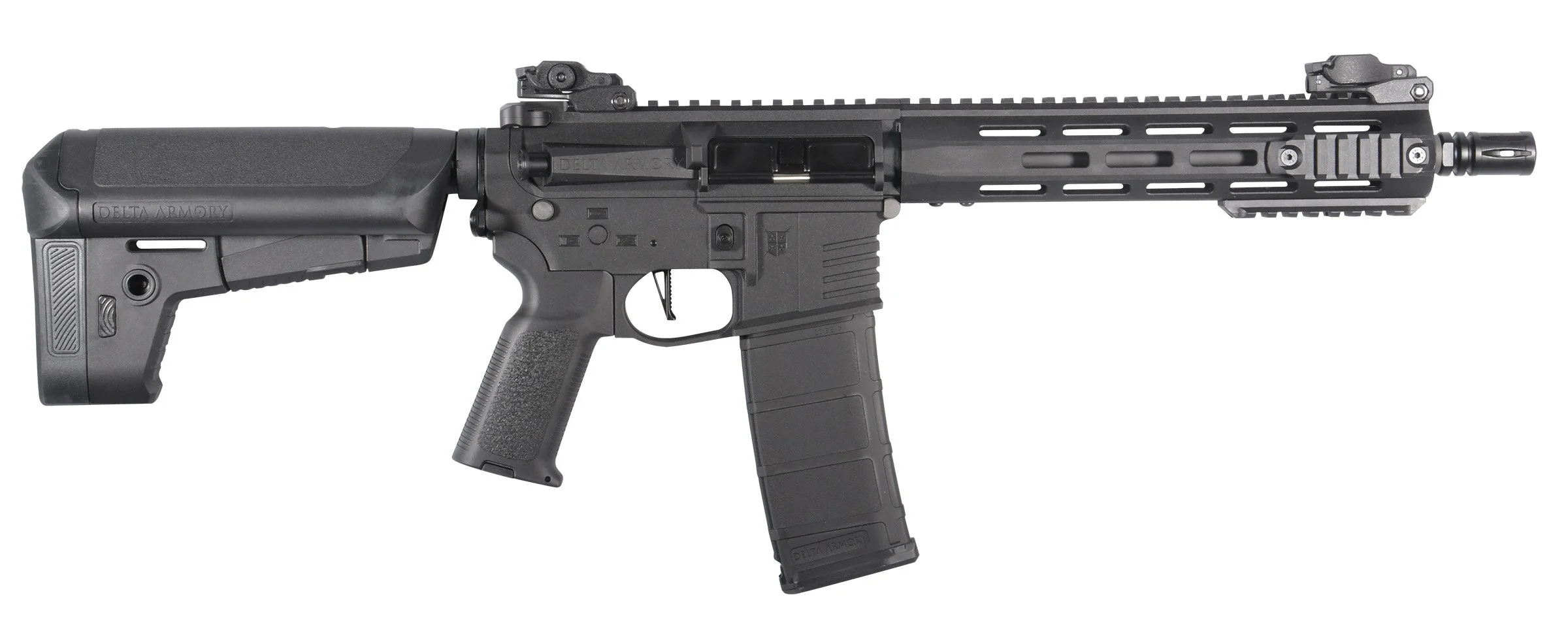

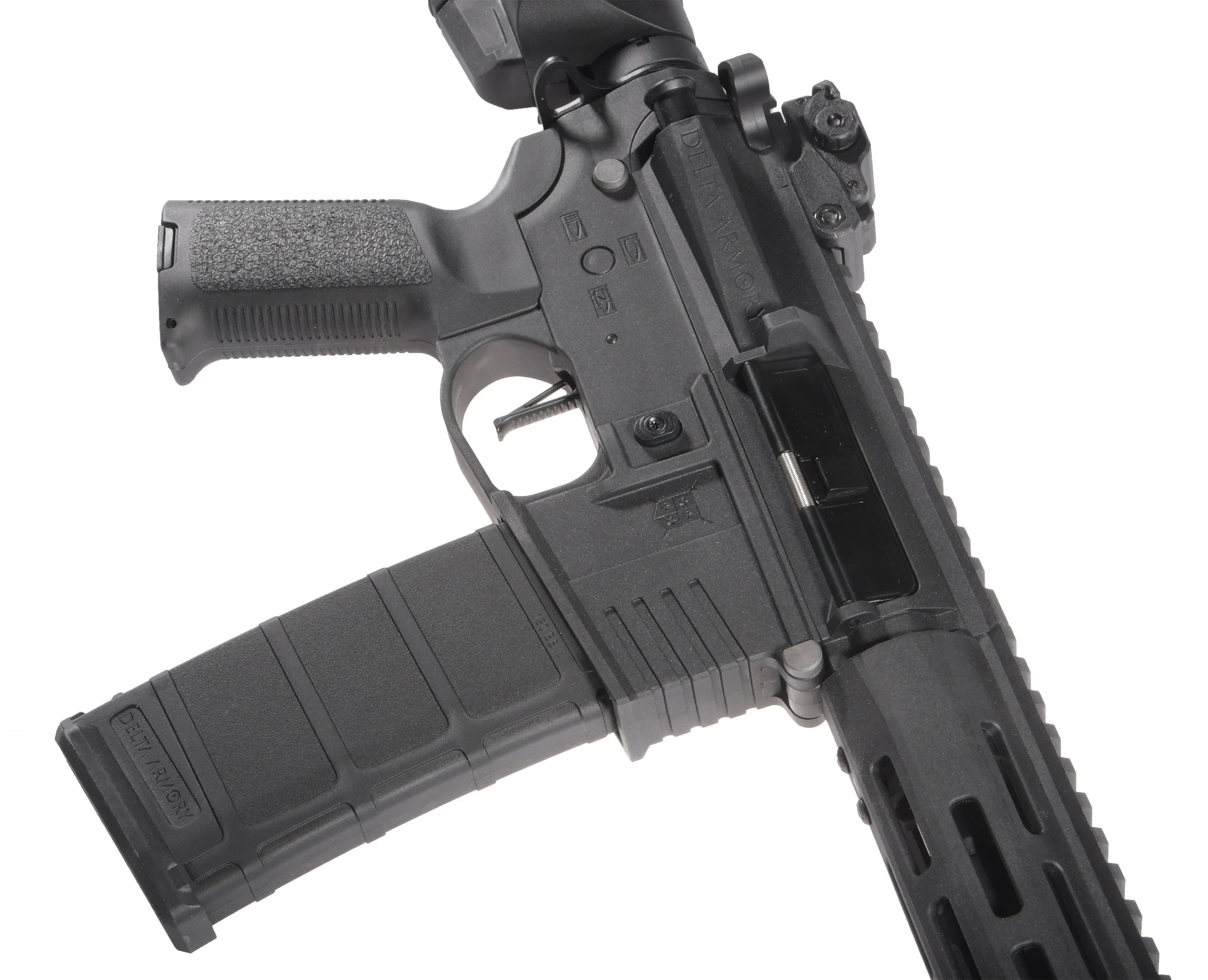

Delta Armory M4 / AR15 M-LOK 10" CHARLIE – Black

Delta Armory AR15 M-LOK 10" CHARLIE AEG - Black

The Delta Armory AR15 M-LOK 10" CHARLIE is a reliable and versatile M4 AEG airsoft rifle designed to deliver an excellent balance of affordability, durability, and performance. Its lightweight construction, modern M-LOK handguard, and reinforced internal components make it an ideal choice for CQB, woodland games, and players looking for an upgrade-friendly platform.

At the heart of the rifle is a reinforced Version 2 gearbox engineered for long-term use with springs up to approximately M120. Proven internal components include an SHS reinforced piston with 14 full steel teeth, reinforced steel gears with a delayer chip, and durable 7 mm metal sleeve bearings, ensuring smooth operation and excellent reliability.

The 6.03 mm precision inner barrel and rotary hop-up chamber work together to provide improved accuracy and maintain consistent hop-up adjustment during prolonged firing. Thanks to the QRS Gen2 Quick Spring Change System, the main spring can be replaced within minutes without opening the gearbox, allowing fast adaptation to different field FPS limits.

Key Features

• Reinforced Version 2 gearbox with QRS Gen2 quick spring change
• SHS reinforced piston with 14 steel teeth
• Reinforced steel gears with delayer chip
• 7 mm metal sleeve bearings
• 6.03 mm precision inner barrel
• Rotary adjustable hop-up chamber
• Durable ABS polymer receiver

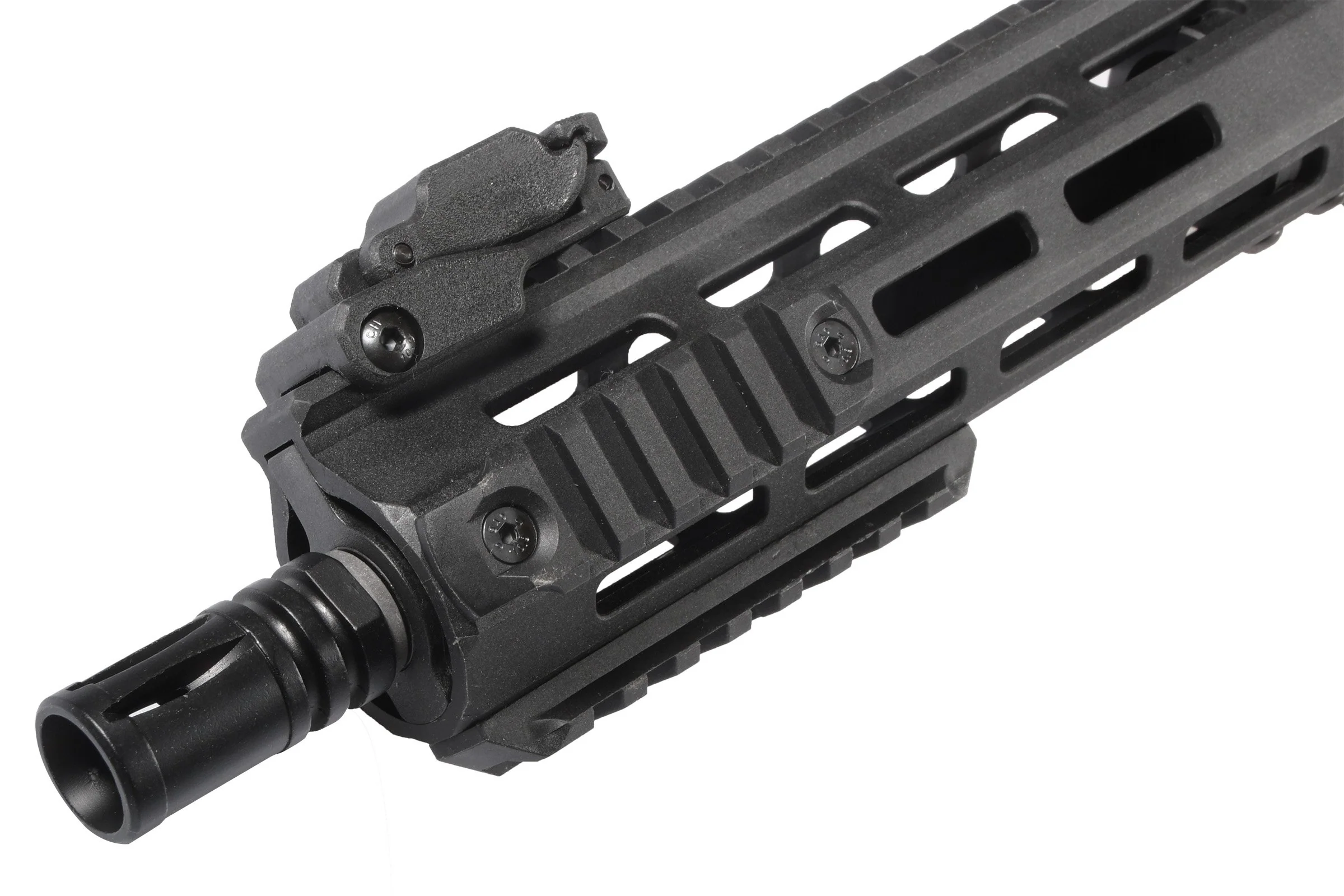

• 10" M-LOK polymer handguard with full-length Picatinny top rail
• Modern CNC aluminium trigger
• Adjustable Crane-style stock with spacious battery compartment
• 14 mm CCW barrel thread for suppressors and tracer units
• 120-round DMAG Mid-Cap magazine included

Reliable Performance for Every Airsoft Player

The 10-inch configuration offers the ideal balance between compact handling and effective range, making this rifle suitable for both indoor CQB arenas and outdoor skirmishes. Delivering approximately 115 m/s (377 FPS with 0.20g BBs), it performs best with 0.25g–0.28g BBs for improved accuracy and consistent flight.

The CHARLIE series uses traditional mechanical trigger contacts and is designed for 7.4V LiPo or Li-Ion batteries. For continuous use with 11.1V batteries, installing a quality MOSFET or ETU such as the Perun Hybrid V2, JeffTron Leviathan V2, or JeffTron Scylla V2 is strongly recommended to protect the trigger contacts and enhance electrical reliability.

Package Contents

• Delta Armory AR15 M-LOK 10" CHARLIE AEG Rifle
• DMAG Mid-Cap Magazine (120 BBs)
• 3x M-LOK RIS Rail Sections

Important Information

• Recommended battery: 7.4V LiPo or Li-Ion.
• Clean the inner barrel and maintain the hop-up unit regularly for maximum performance.
• Always wear approved eye protection during use.
• Using an 11.1V battery requires a MOSFET or ETU.
• Use quality M120 springs or lower to maximise gearbox longevity.
• When installing progressive springs, position the tighter coil end toward the spring guide.
• Always disconnect the battery before storing the rifle.

Recommended Accessories

Complete your setup with premium accessories from Airsoftmania:

• Airsoft Guns
• Airsoft BBs
• Batteries & Chargers
• Red Dot Sights & Scopes
• Delta Armory

Technical Specifications

Model	Delta Armory AR15 M-LOK 10" CHARLIE
Color	Black
Weapon Type	AEG Electric Airsoft Rifle
Variant	CHARLIE
Gearbox	Version 2 QRS Gen2
Quick Spring Change	Yes
Inner Barrel	280 mm × 6.03 mm
Muzzle Velocity	Approx. 115 m/s (377 FPS)
Recommended BB Weight	0.25g–0.28g
Hop-Up	Rotary Adjustable
Bearings	7 mm Metal Sleeve Bearings
Piston	SHS Reinforced (14 Steel Teeth)
Receiver	ABS Polymer
Handguard	10" M-LOK Polymer
Thread	14 mm CCW
Magazine Capacity	120 BB Mid-Cap
Battery	7.4V LiPo / Li-Ion (not included)
Connector	Mini Tamiya
MOSFET	No
Weight	2100 g
Length	715–795 mm
